Drum tilter for 205 L steel drums, forklift attachment

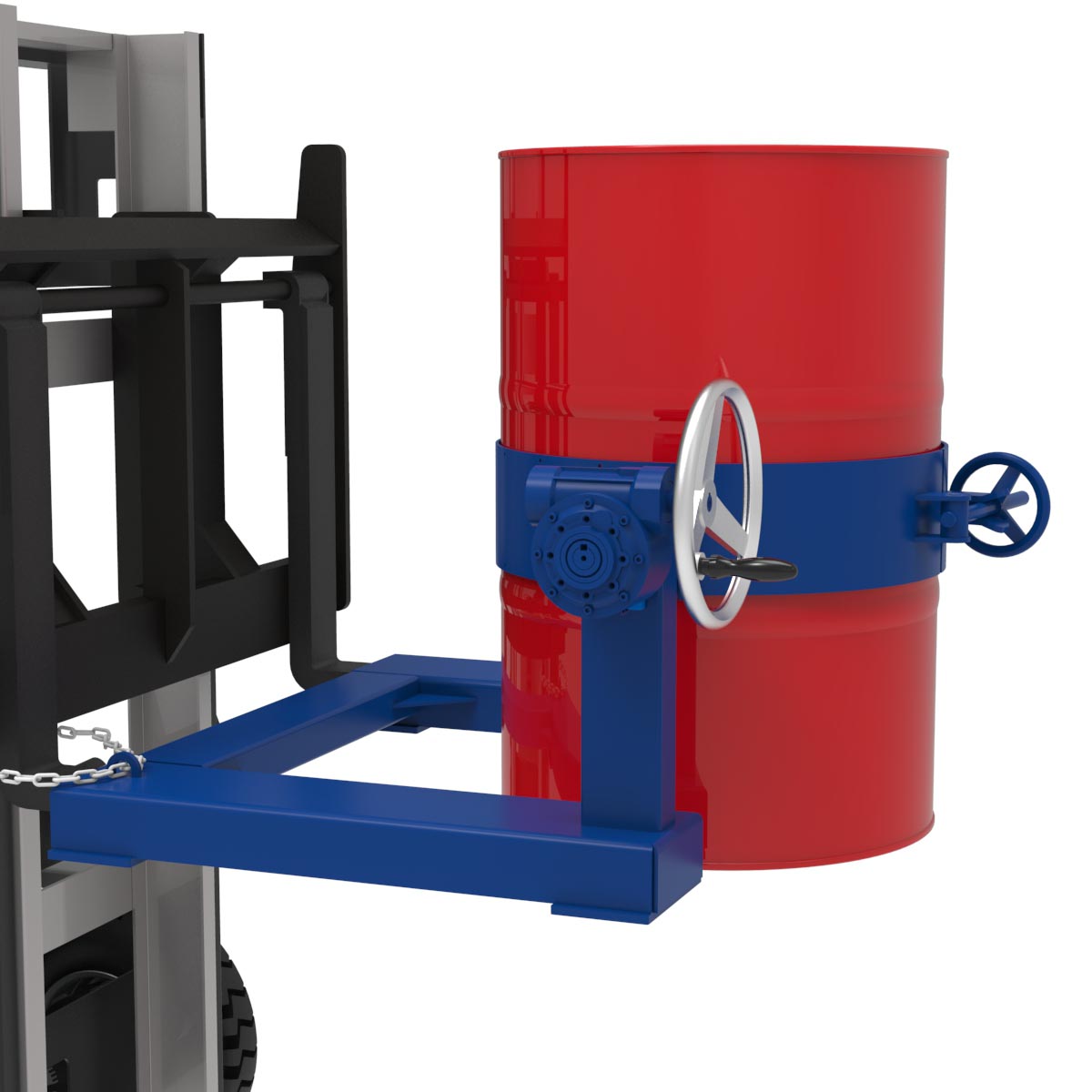

Description The drum tilter for steel drums is a high-quality forklift attachment designed for regular drum handling. The forklift tines engage the drum tilter by driving into the pockets. It accommodates 205-liter rolling hoop and beaded drums with a diameter of 570 mm. The drum is securely held and clamped in place with a spindle lock in the band clamps. The drum can be tilted via the self-locking gearbox using a handwheel or crank chain. Even heavy drums can be tilted easily thanks to the 400 kg load capacity. The fork pocket dimensions are 170 x 75 mm, and the fork spacing (center to center) is 860 mm. A chain slip-off safety device securely fastens the drum tilter to the forks to prevent accidental slippage. The drum tilter is painted in RAL 5002, and custom coatings in other RAL colors are available upon request. For upright 205-liter rolling hoop and beaded drums Pickup frame with fork pockets Emptying at any height Manual operation via handwheel or continuous crank chain (2.0 m hanging down) Side-mounted, self-locking, and maintenance-free worm gear with gear protection cover Secure drum handling through rubberized internal band clamps with spindle lock Chain safety device to prevent slipping off the forklift tines Drum rotation up to 360° possible Finish: Painted in RAL 5002 Electric pallet truck version available upon request Dimensions of FKT-ST (W x D): approx. 1200 x 900 mm
