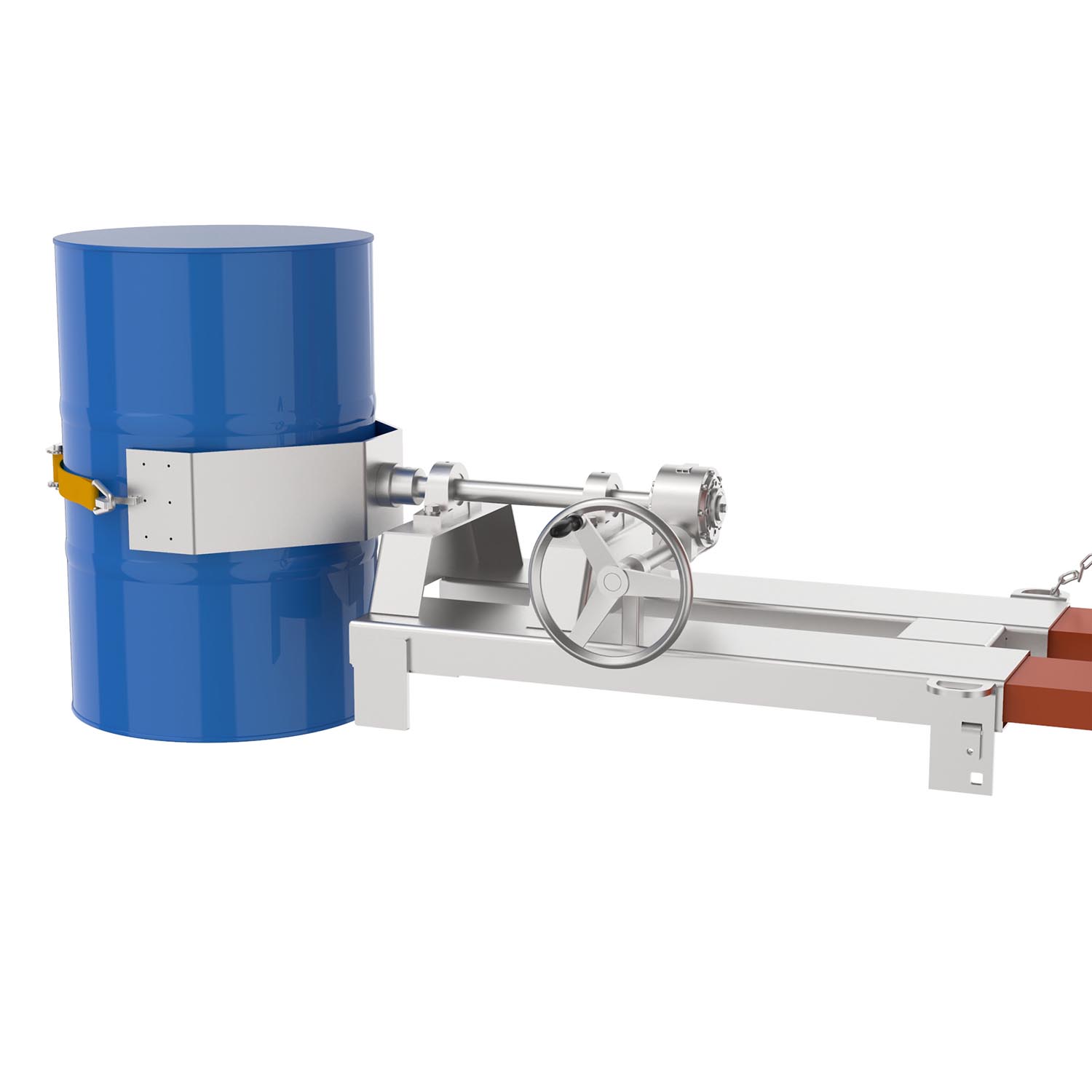

Drum rotator FA-W, made of stainless steel, for handling a single 205 L drum, attachment for electric high-lift stackers

Description The stainless steel drum tilter for electric high-lift stackers is a professional attachment designed for tilting or rotating 200-liter rolling hoop and beaded drums. The high-lift stacker can securely accommodate the drum tilter. To enhance operational safety, the drum tilter is fixed in place with a chain slip lock.The drum is clamped upright into the gripping shell using a ratchet strap. By operating the gear mechanism with a handwheel, the drum can be tilted and emptied at any desired height. The rotation range is 360°. Optionally, the stainless steel drum tilter is available with a gear mechanism filled with food-grade oil (please inquire). Thanks to its stainless steel (V2A) construction, the drum tilter is highly suitable for applications in the food or pharmaceutical industries as well as in explosion-proof (Ex) zones. Technical Specifications: Load Capacity: 360 kg Drum Shell Diameter: 570 mm Fork Pocket Cross-Section: 215 x 65 mm Rotational Range: 360° Fork Spacing (Center to Center): 510 mm Fork Length: 800 mm Compatible Drums: 200-liter rolling hoop and beaded drums
