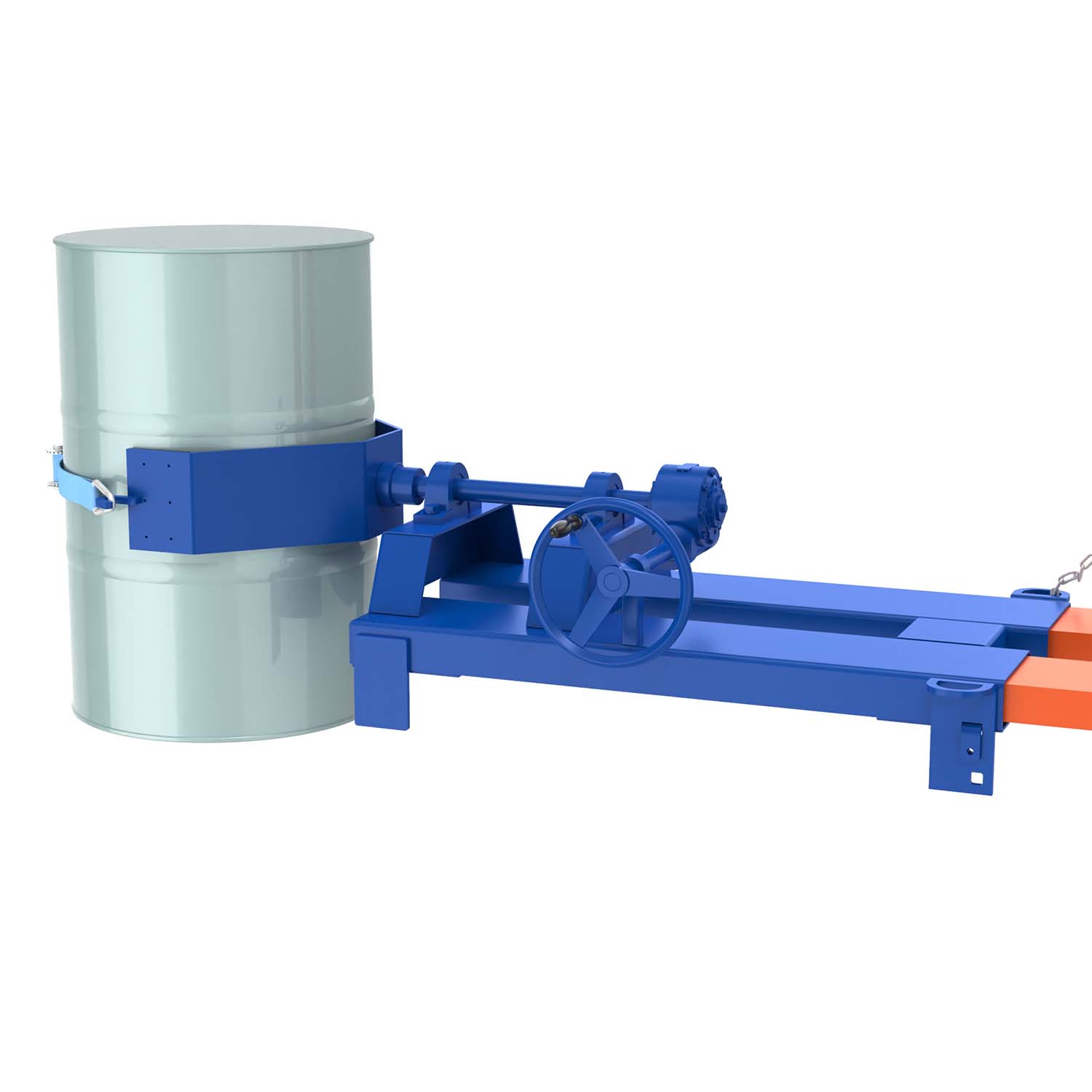

Drum rotator FA-W for handling a single 205 L drum, attachment for electric high-lift stackers

Description The steel drum rotator for electric high-lift trucks is a professional attachment designed for tilting and rotating 200-liter beaded and rolling hoop drums. The electric high-lift truck can accommodate the drum rotator, which is securely fixed using a chain slip lock to enhance operational safety. The drum is picked up in an upright position and clamped into the gripping shell using a ratchet strap. By operating the gear mechanism via either a handwheel or a 2-meter-long loop chain, the drum can be rotated and emptied at any height. The rotation range is 360°. Technical Specifications Load capacity: 360 kg Drum diameter: 570 mm Fork pocket cross-section: 215 x 65 mm Rotation range: 360° Fork spacing (center-to-center): 510 mm Fork length: 800 mm Suitable for: 200-liter beaded and rolling hoop drums Operation: Handwheel or 2-meter loop chain This attachment provides a safe and efficient solution for handling and emptying drums in industrial and warehouse environments.
